THEATRICAL LIGHTING
Samil Church





Project Description
1. Where was the product installed?

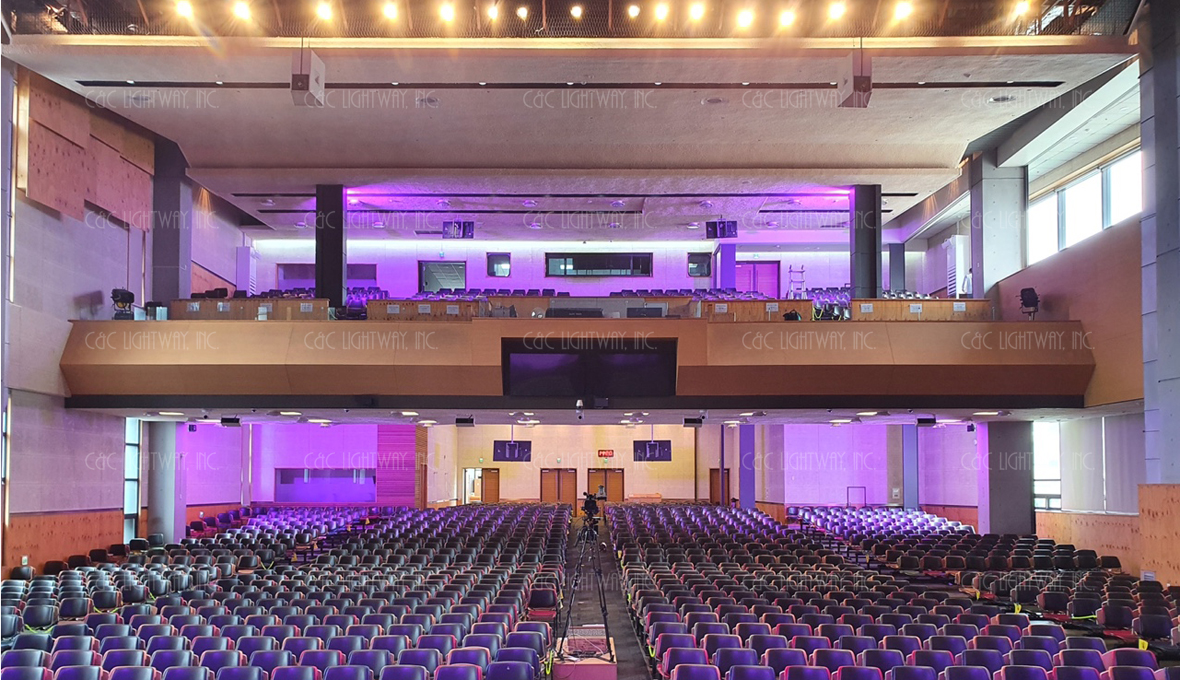

The product was installed in the main sanctuary of Samil Church, replacing the existing Source Four units.

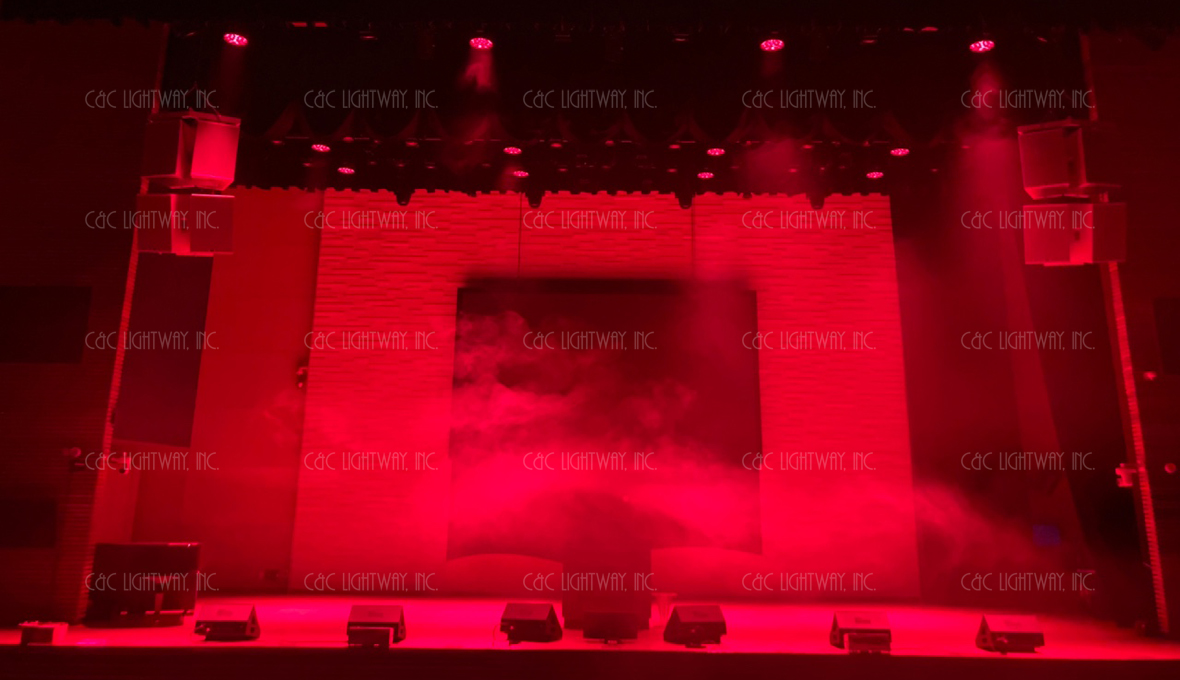

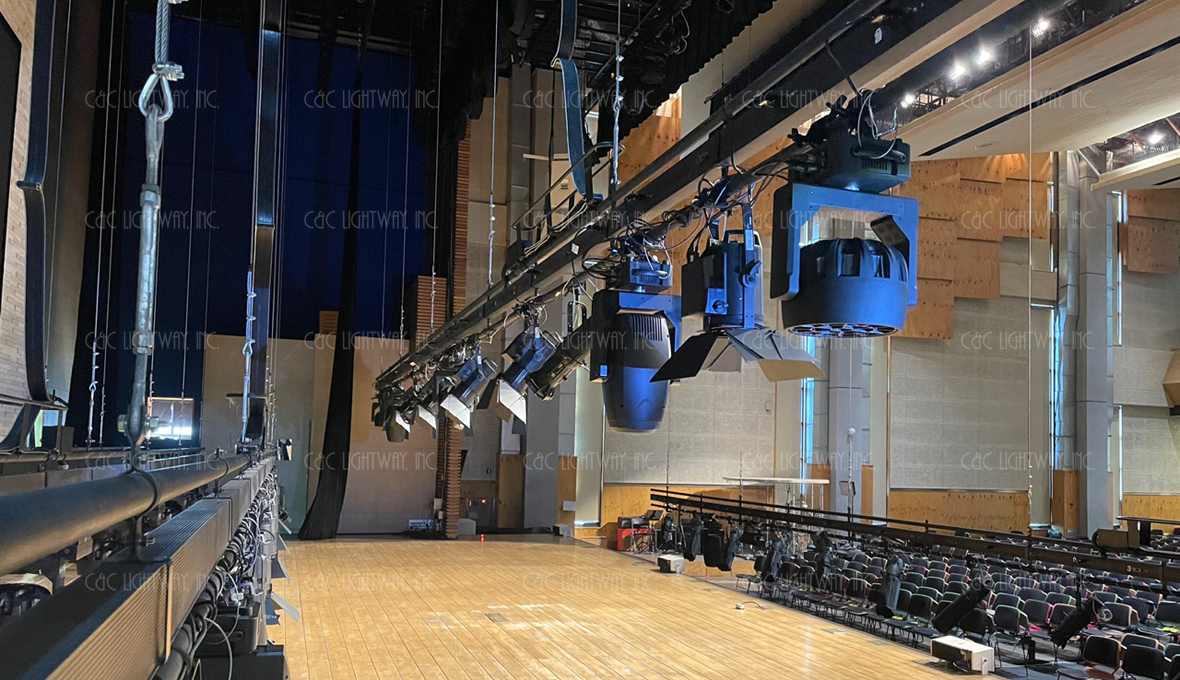

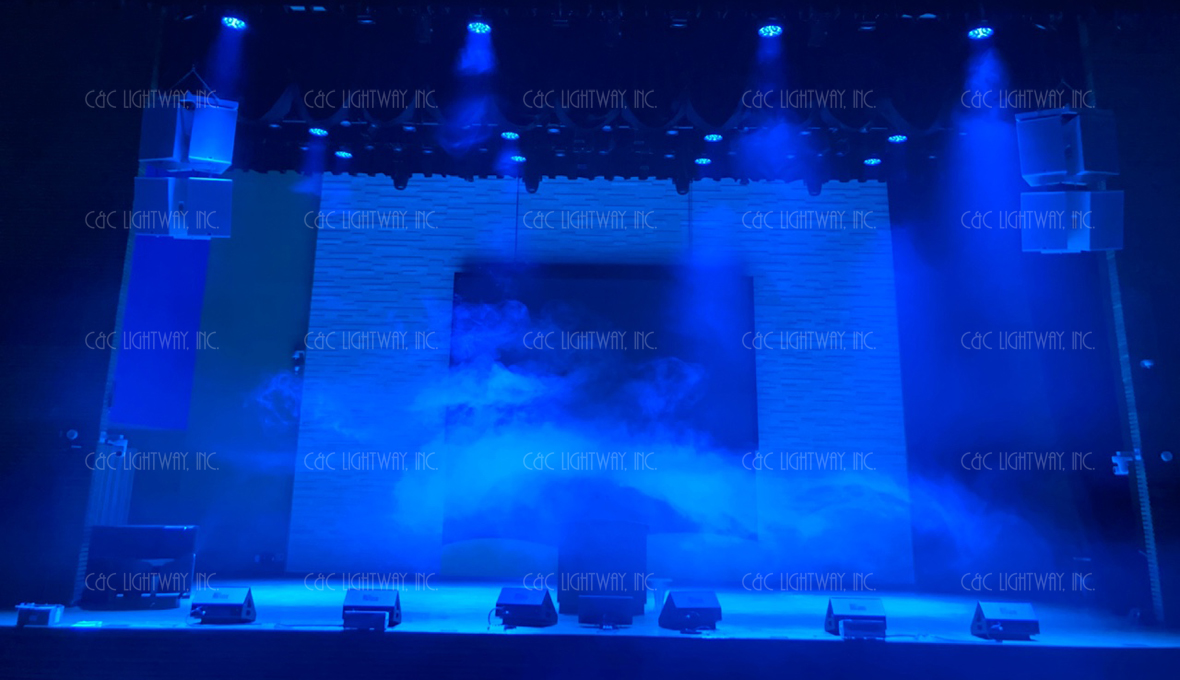

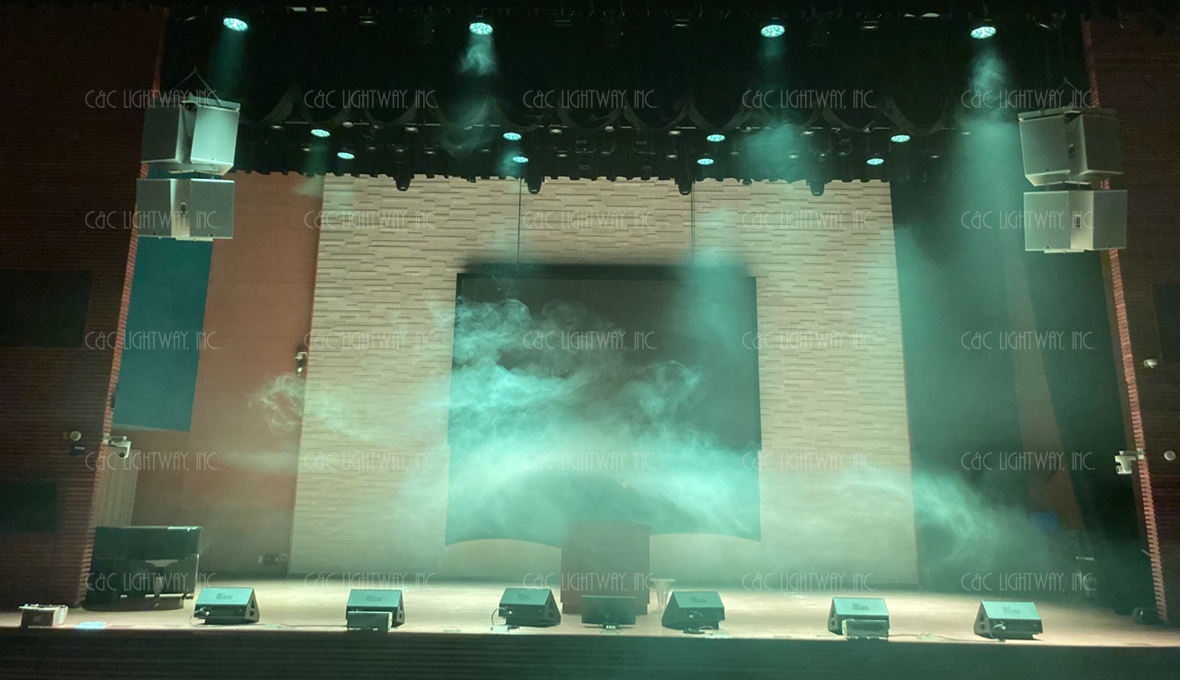

They were mainly positioned above the audience area and at the front of the stage, with additional fixtures installed overhead on stage to highlight performers.
2. Why did C&C recommend the S4WRD to the client?
Since Samil Church was already using Source Four fixtures, the existing housings could be reused.
By applying an LED system, the solution provided outstanding advantages in performance, heat reduction, and efficiency, which ultimately offered significant economic benefits.
3. Why did the client choose this product?
The client trusted C&C Lightway and ETC.
They could upgrade to an LED system while reusing their existing equipment.
The replacement fixtures offered notable efficiency and cost-effectiveness, and the fact that ETC products are already widely used in many performance venues further reinforced their decision.
4. What differentiates this product from other brands?
The ability to reuse existing equipment, resulting in substantial cost savings, was the most decisive factor.
5. What results were achieved with the ETC fixtures? Did they meet the client’s expectations for lighting effects?
The brightness nearly doubled compared to the previous halogen lamps.
Power consumption and heat emission were significantly reduced, and there was no visible amber drift at varying brightness levels. The client expressed a high level of satisfaction with the results.
6. Additional remarks
A representative from Samil Church explained that, due to the architectural structure of the church, lamp replacement and maintenance of lighting fixtures had been difficult. They needed fixtures that were quiet and easy to maintain.
C&C Lightway worked to find the best solution to meet these needs, and the S4WRD proved to be the perfect choice.
After installation, the church was highly satisfied with the S4WRD’s quiet operation and its ability to provide even, consistent illumination.
POWER CONTROL : Echo Relay Panel 24way, ETC
LED Engine (S4WRD CE LED Retrofit Kit, ETC) : 48 SET
LED Zoom Light (ECLFRESNELTU, Prolights) : 24 SET
LED Zoom PAR (VERSAPAR, Prolights) : 12 SET
LED Moving Spot (LUMA 1500SH, Prolights) : 10 SET
LED Moving Wash (STARK1000, Prolights) : 12 SET
LED Wash (SUNBLAST3000FC, Prolights) : 10 SET
Hazer Machine (UNIQUE Haze, Look Solutions) : 1 SET
Fog Machine (Viper 2.6kw, Look Solutions) : 1 SET
Project Details
- Category | THEATRICAL LIGHTING |
---|---|
- Location | Yongsan-gu, Seoul, Republic of Korea |
- Year | 2021 |
